New
Original price was: $144.99.$72.00Current price is: $72.00.
- We take quality seriously.
- The best quality products, always.
- Control the delivery date and try to deliver it in the fastest time
- Online customer care, always here for you.
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Product Specifications
| Current Draw Stall | 4900mA @ 6.0V |
| Servo Operating Voltage | 6.0 – 8.4V (HV) |
| Product Height | 1.38 in (35.1mm) |
| Servo Type | Digital |
| Application | 1/8 Off-Road |
| Max Servo Torque | 350-499 oz-in |
| Product Weight | 2.8 oz (79.4g) |
| Spline Count | 23 Teeth |
| Maximum Servo Torque | 238 oz-in (17.1kg-cm) @ 6V; 292 oz-in (21.0kg-cm) @ 7.4V; 331 oz-in (23.8kg-cm) @ 8.4V |
| Servo Size Category | Standard |
| Connector Wire Length | 7.87 in (200mm) |
| Current Draw Idle | 10.2mA @ 6.0V |
| Product Width | 0.82 in (20.8mm) |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.050-0.099 sec |
| Product Length | 1.61 in (41mm) |
| Programmable | No |

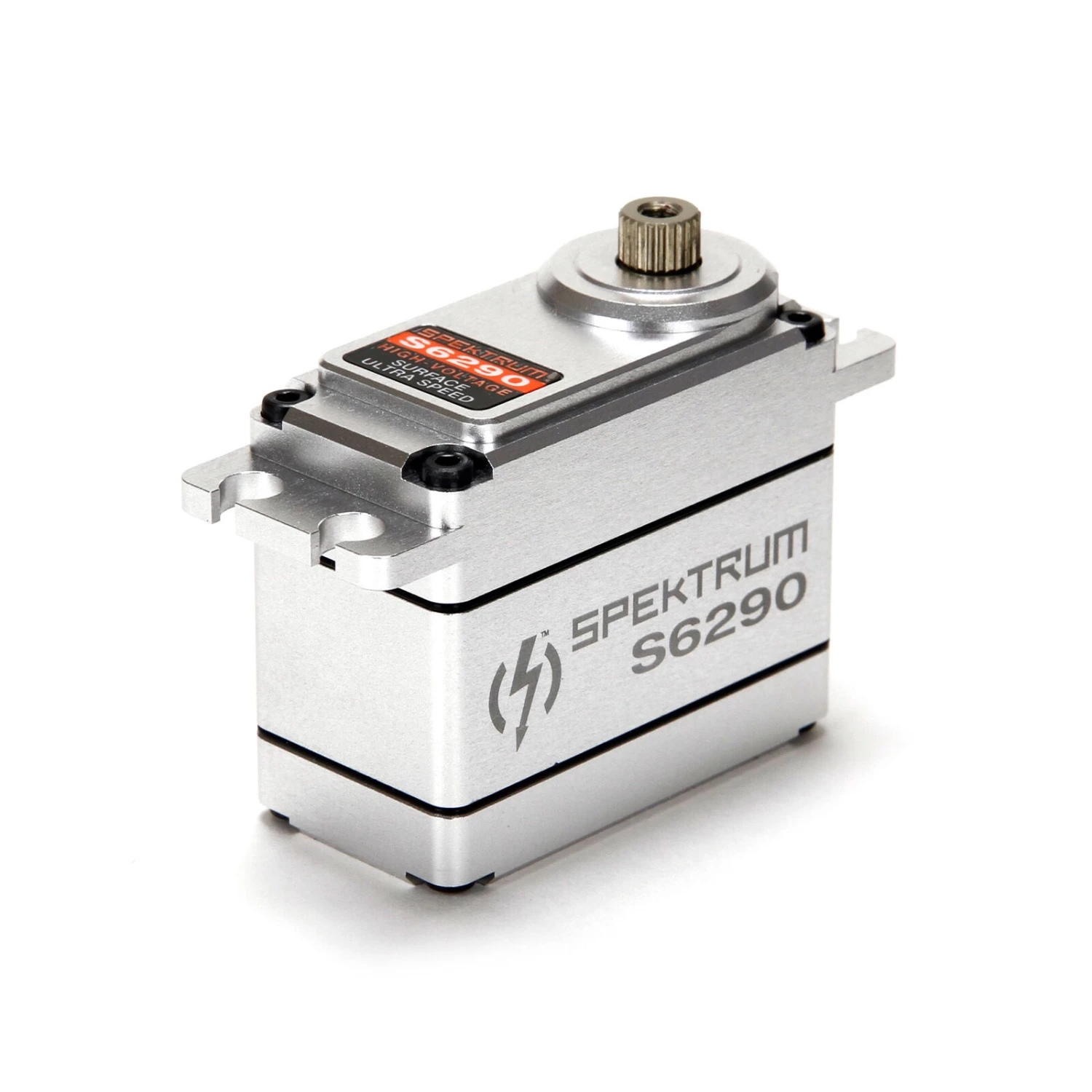

Be the first to review “Spektrum S6290 Standard Digital HV Ultra Speed Metal Gear Surface Servo”
