Product Details
Key Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8″ mm bore)
- Perfect balance of speed and torque, great for trail and scale crawling applications
- High-quality 4-pole sintered rotor
- Polarity protection – magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.

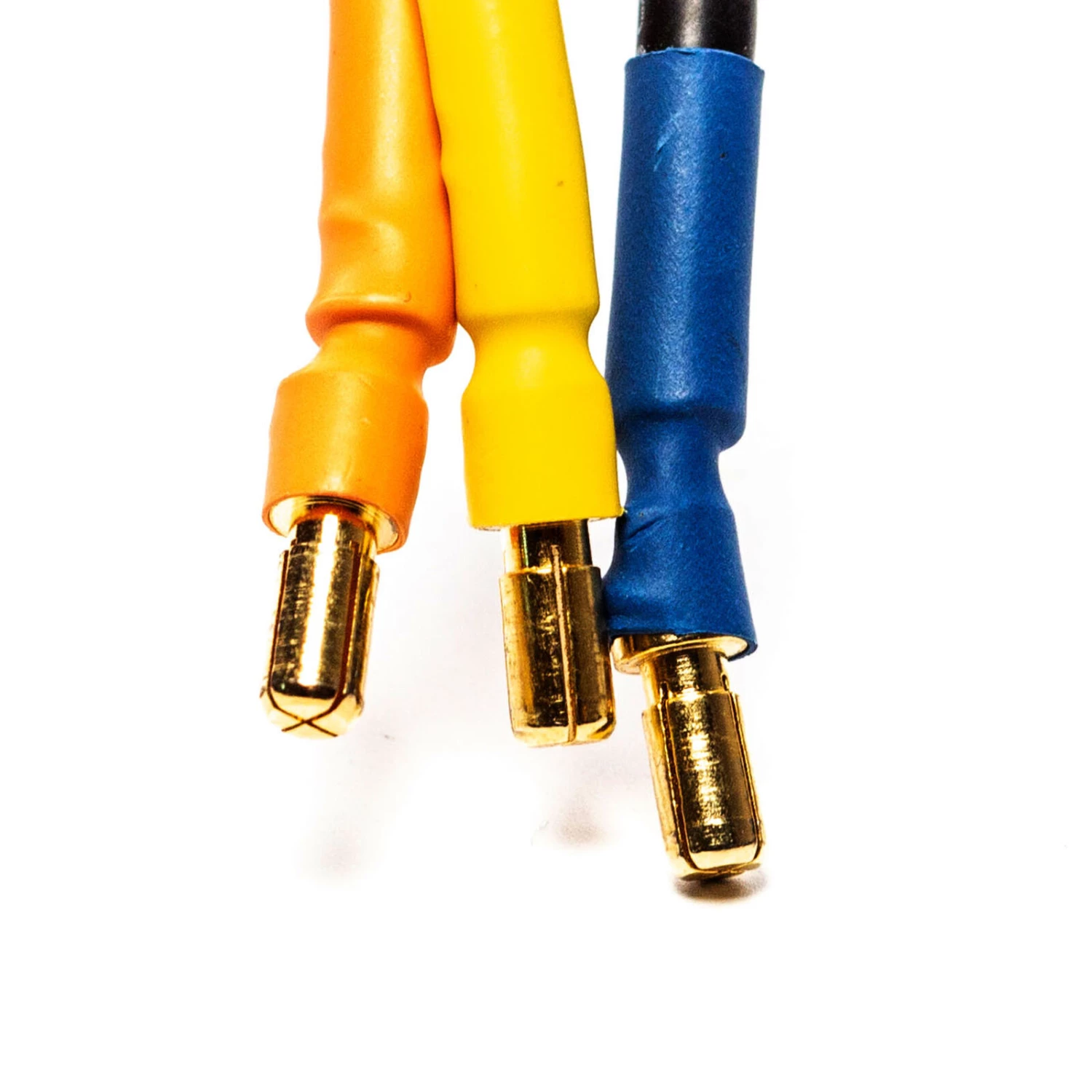

- 3.5mm Gold Plated Bullet Connectors
Features
Product Specifications
| Reverse | Yes |
| Bushing Or Bearing | Bearing |
| Forward | Yes |
| Product Length | 2.27″ (58 mm) |
| Connector Type | 3.5mm Bullet |
| Motor Size | 540-2100Kv Brushless Sensored |
| Input Voltage | 7.4 – 11.1V |
| Recommended Speed Control | Spektrum Firma 60A Sensored Brushless Smart Crawler ESC |
| RPM/Volt (Kv) | 2100Kv |
| Application | 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power |
| Number of Poles | 4 |
| Shaft Diameter | 0.125″ (3 mm) |
| Water-Resistant | Yes |
| Maximum Continuous Current | 38A |
| Motor Type | Brushless – Sensored |
| Outer Diameter | 1.42″ (36 mm) |
