Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation

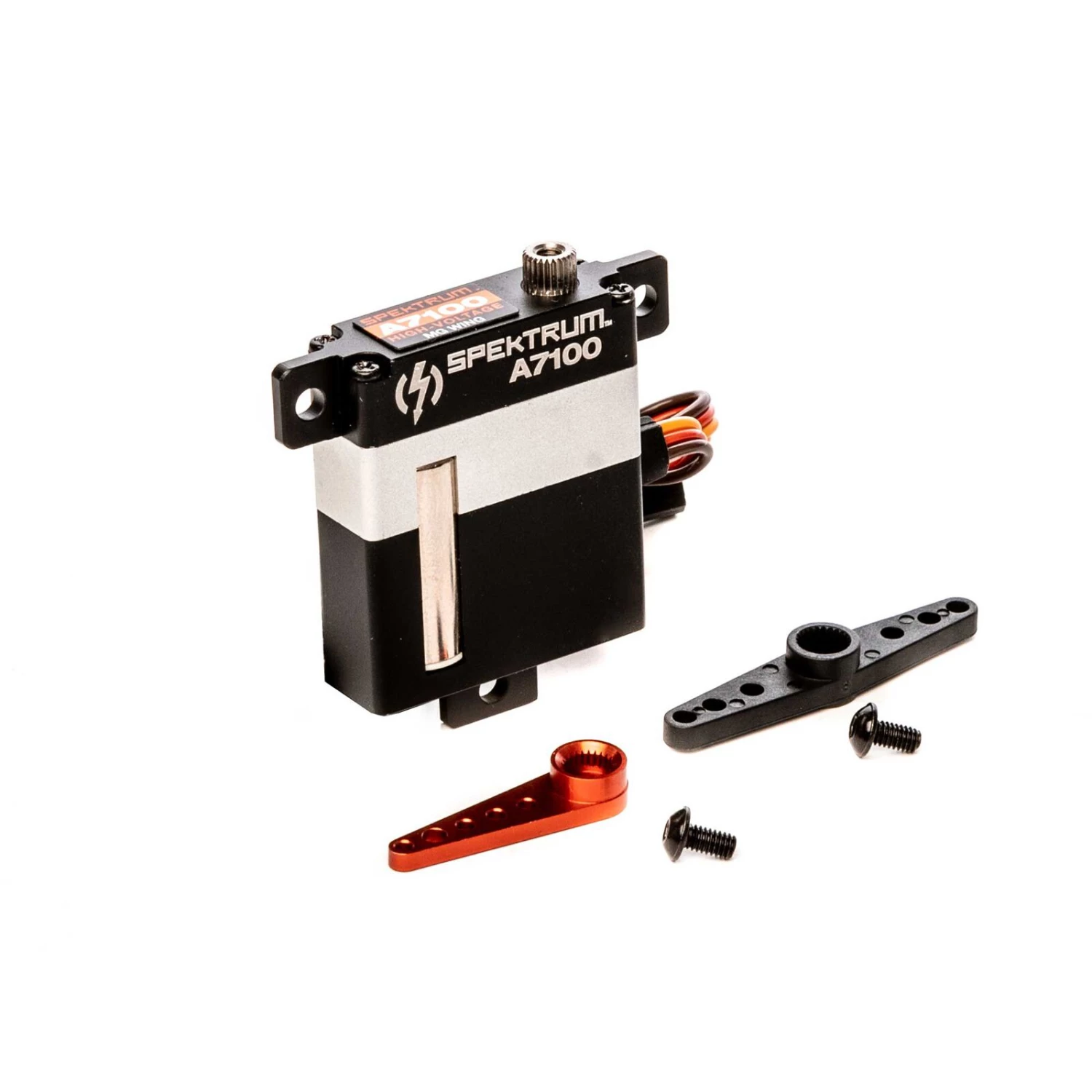

In The Box
- (1) A7100 Wing Servo
- (1) Double-sided Plastic Servo Arm
- (1) One Inch Red Anodized Aluminum Servo Arm
Features
Product Specifications
| Programmable | No |
| Servo Size Category | Thin |
| Product Length | 1.18″ (30 mm) |
| Max Servo Torque | 100-199 oz-in |
| Overload Protection | No |
| Product Weight | 1.0 oz (28g) |
| Spline Count | 25 – Tooth |
| Bearing | Single BB |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V |
| Product Width | 0.39″ (10 mm) |
| Maximum Servo Torque | 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V |
| Motor Type | Brushed |
| Deadband | <1µs |
| Input Voltage | 4.8V-8.4V |
| Product Height | 1.38″ (35 mm) |
| Servo Type | Digital |
