Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation

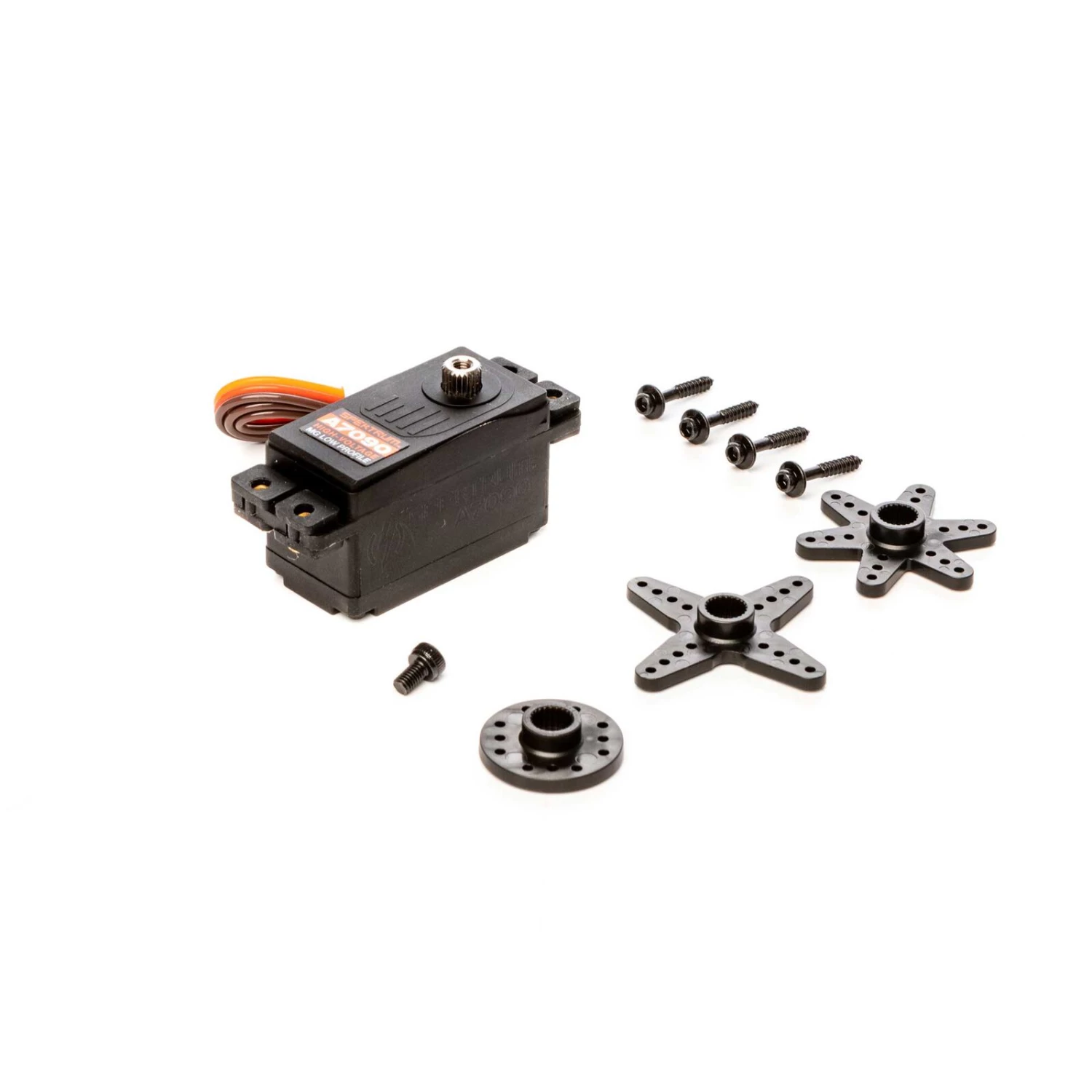

In The Box
- (1) A7090 Brushless Servo
- (4) Pre-installed Mounting Grommets and Eyelets With Hardware
- (3) Plastic Servo Arms and (1) Screw
Features

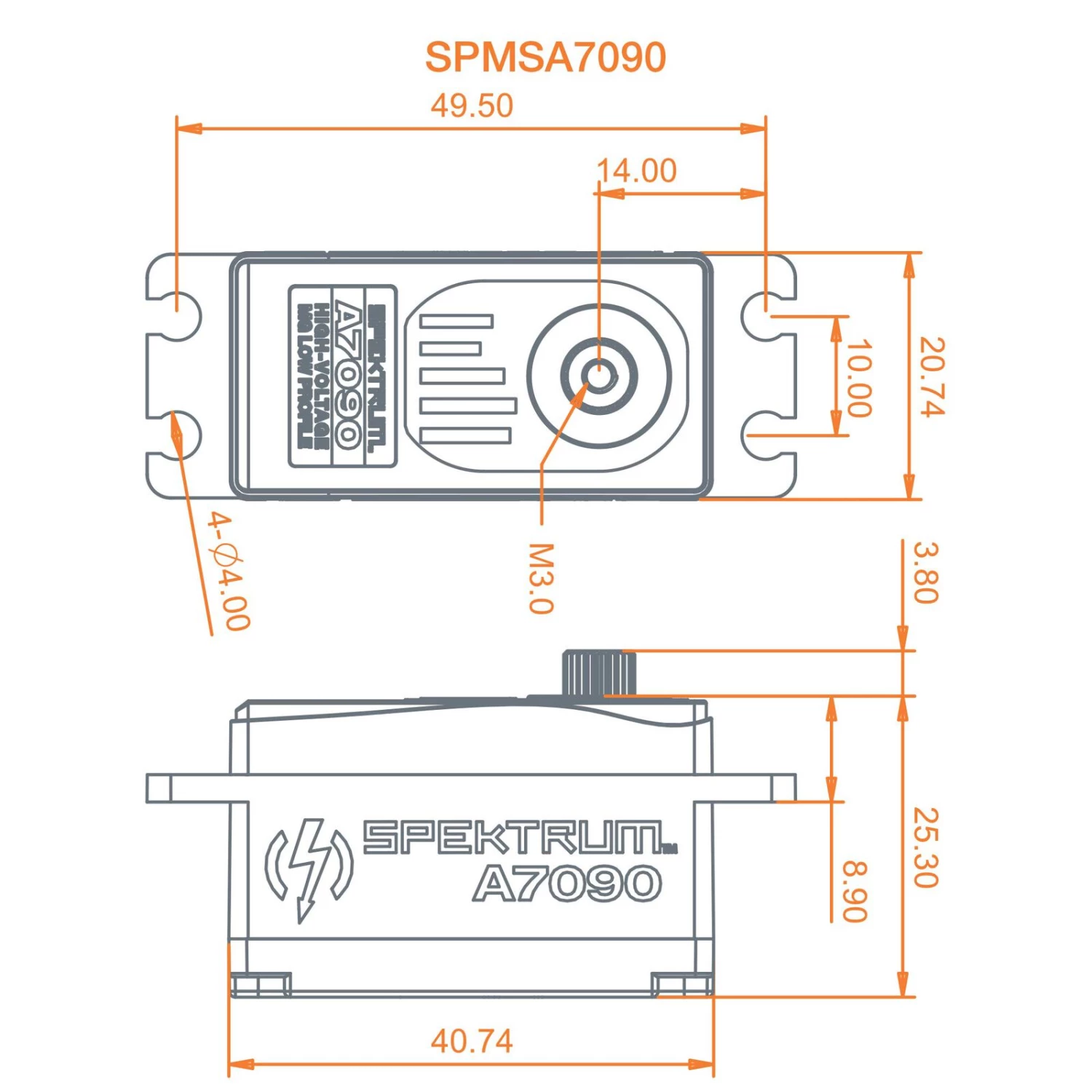

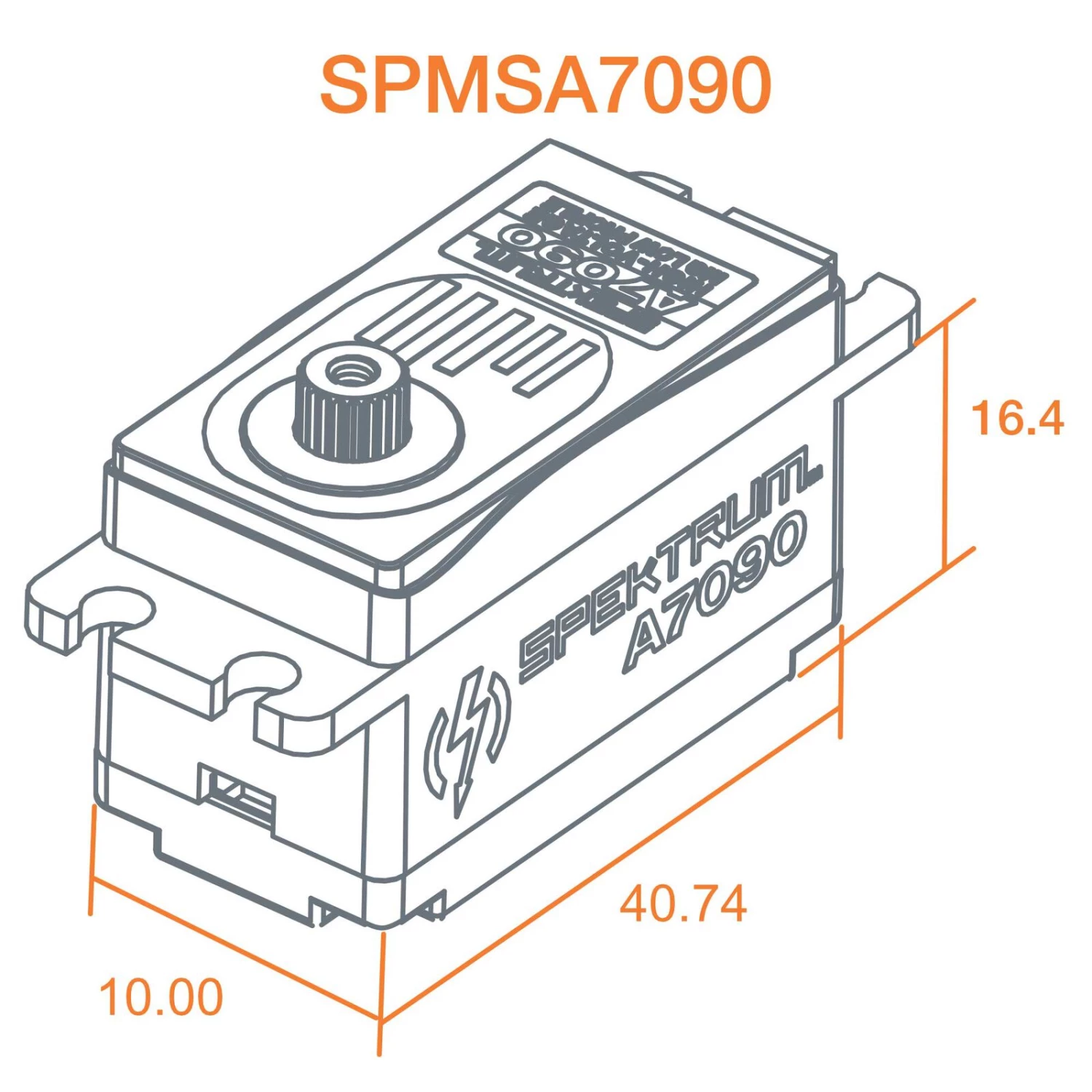

Product Specifications
| Deadband | <1µs |
| Input Voltage | 4.8V-8.4V |
| Product Height | 0.99″ (25 mm) |
| Servo Type | Digital |
| Bearing | Dual BB |
| Bushing Or Bearing | Bearing |
| Maximum Servo Torque | 205 oz-in (14.76kg-cm) @ 6.0V; 215 oz-in (15.5kg-cm) @ 7.4V; 250 oz-in (18kg-cm) @ 8.4V |
| Product Width | 0.81″ (21 mm) |
| Max Servo Torque | 200-349 oz-in |
| Overload Protection | No |
| Product Weight | 1.8 oz (50g) |
| Spline Count | 23 – Tooth |
| Gear Type | Metal |
| Maximum Servo Speed | 0.17 sec/60 deg @ 6.0V; 0.091 sec/60 deg @ 7.4V; 0.068 sec/60 deg @ 8.4V |
| Motor Type | Brushless |
| Servo Operating Voltage | 4.8 – 8.4V (HV) |
| Product Length | 1.6″ (41 mm) |
| Programmable | No |
| Servo Size Category | Low Profile |
| Material | Aluminium |
