Product Details

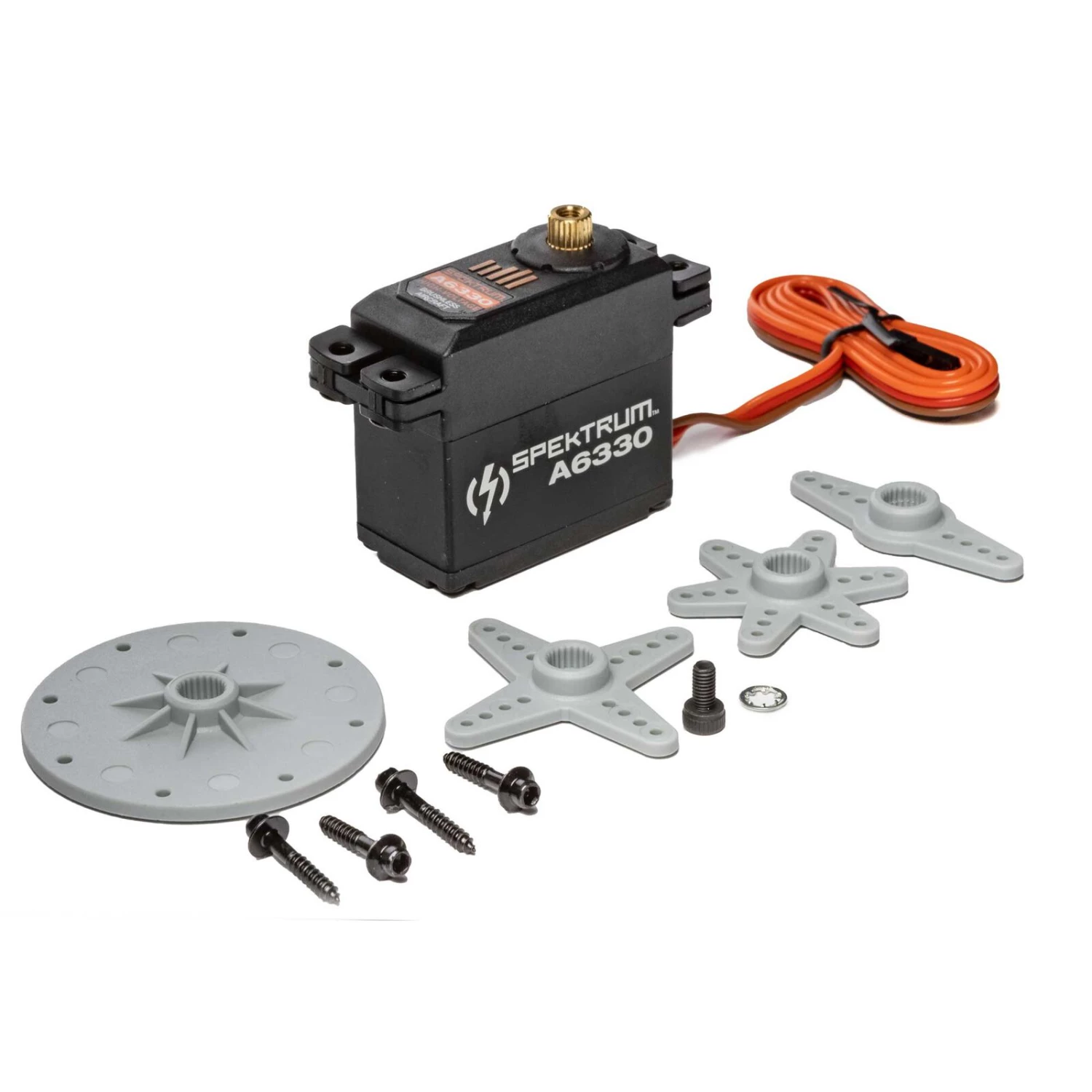

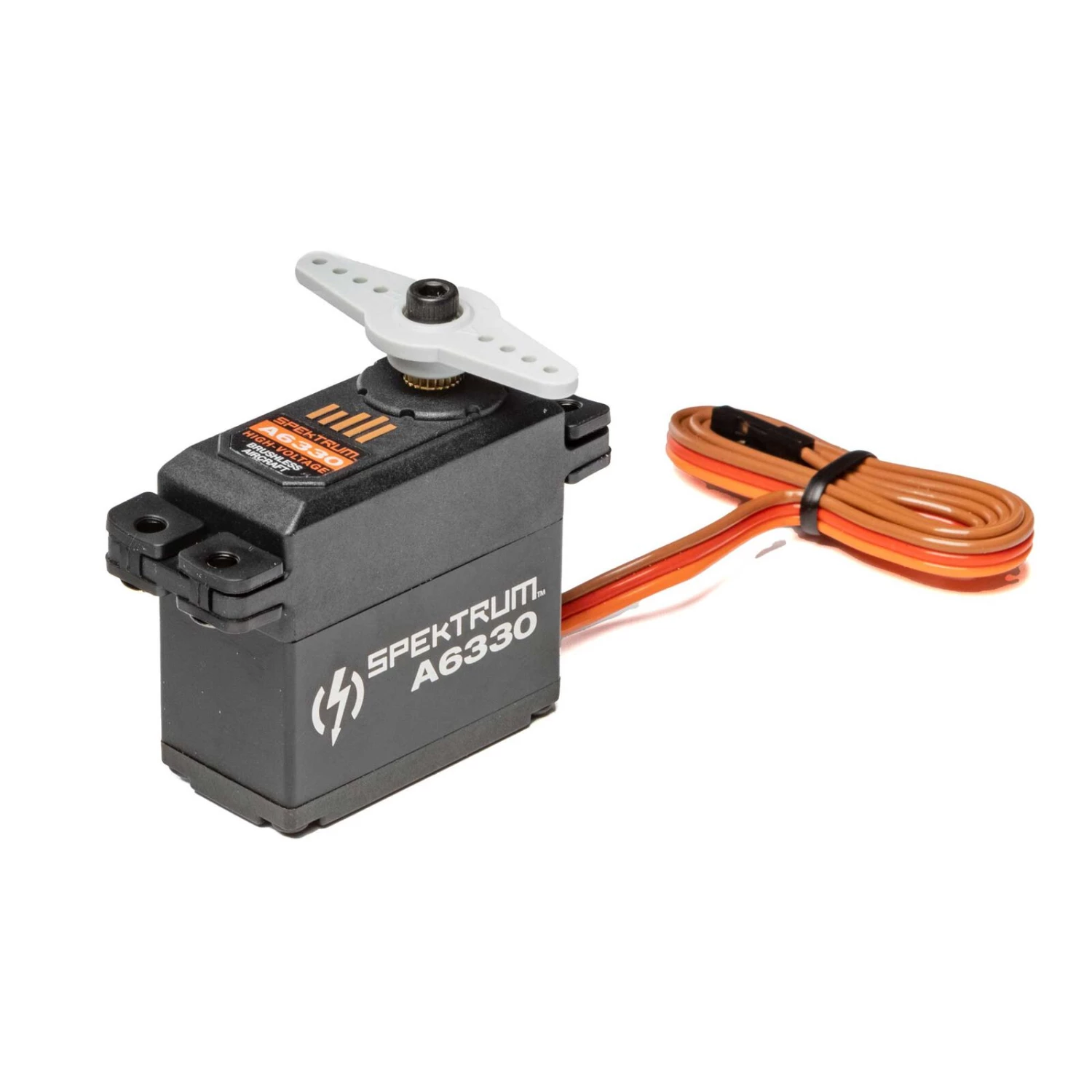

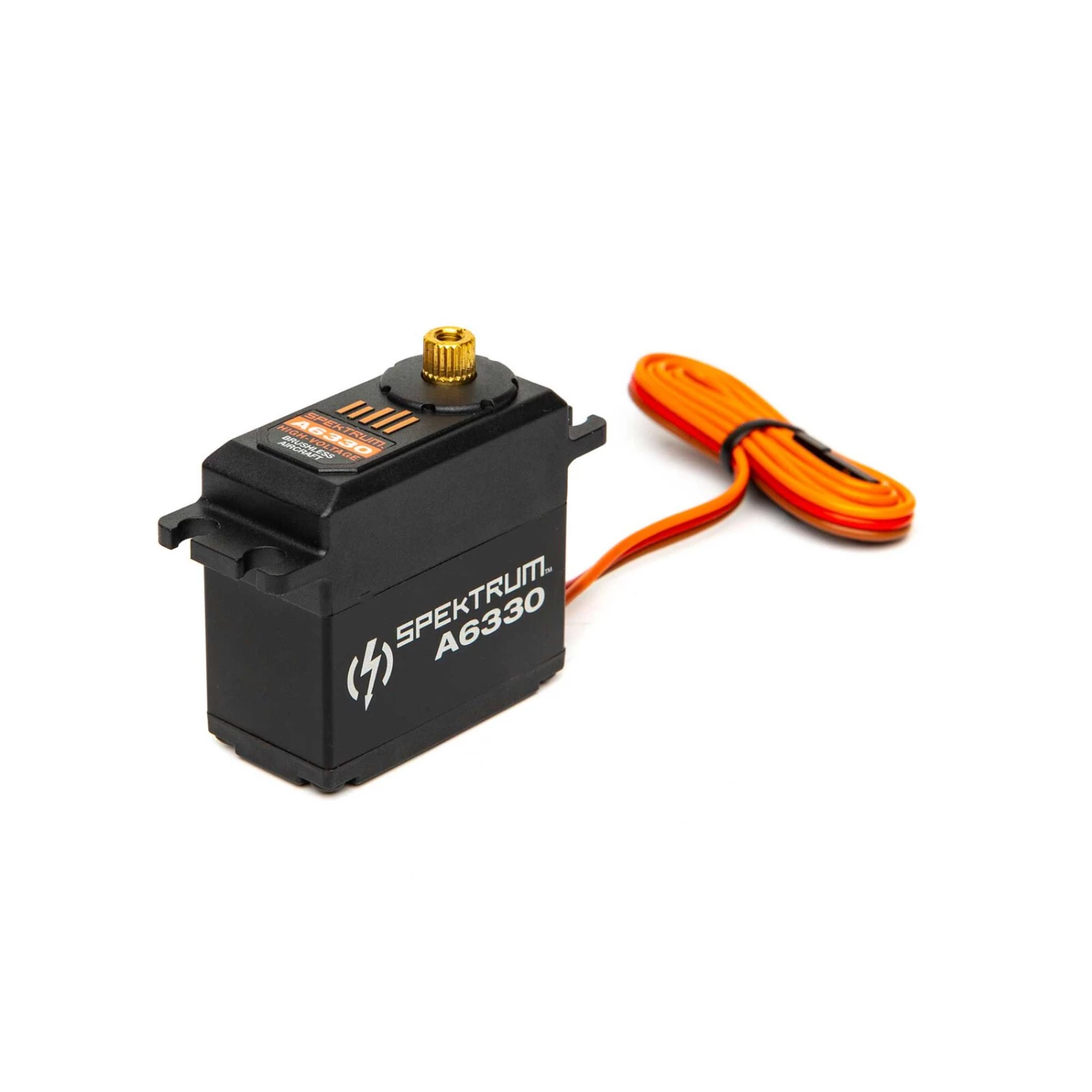

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.
Key Features
- Brushless motor provides long lasting durability and impressive power and speed
- High Voltage (HV) capable (6.0-8.4v input range)
- Durable and long lasting brushless motor
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
Features
Product Specifications
| Servo Type | Digital |
| Input Voltage | 6 – 8.4V |
| Product Height | 1.56″ (40 mm) |
| Bearing | Dual ball bearings |
| Gear Type | Metal |
| Maximum Servo Speed | 0.100-0.149 sec |
| Wire Gauge | 22 AWG |
| Application | Airplane |
| Max Servo Torque | 200-349 oz-in |
| Overload Protection | Yes |
| Maximum Servo Torque | 126.6 oz-in (9.11 kg-cm) @ 6V, 178 oz-in (12.82 kg-cm) @ 7.4V, 248 oz-in (17.86 kg-cm) @ 8.4V |
| Motor Type | Brushless |
| Servo Operating Voltage | 6.0 – 8.4V (HV) |
| Product Width | 0.79″ (20 mm) |
| Product Weight | 2.25oz (71g) |
| Spline Count | 23 – Tooth |
| Programmable | No |
| Servo Size Category | Standard |
| Product Length | 1.58″ (40 mm) |
| Rotation Range | 120 degree |
