Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Perfectly suited for sport and trainer type model aircraft requiring standard size servos
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Operating Frequency: 200hz to 333hz

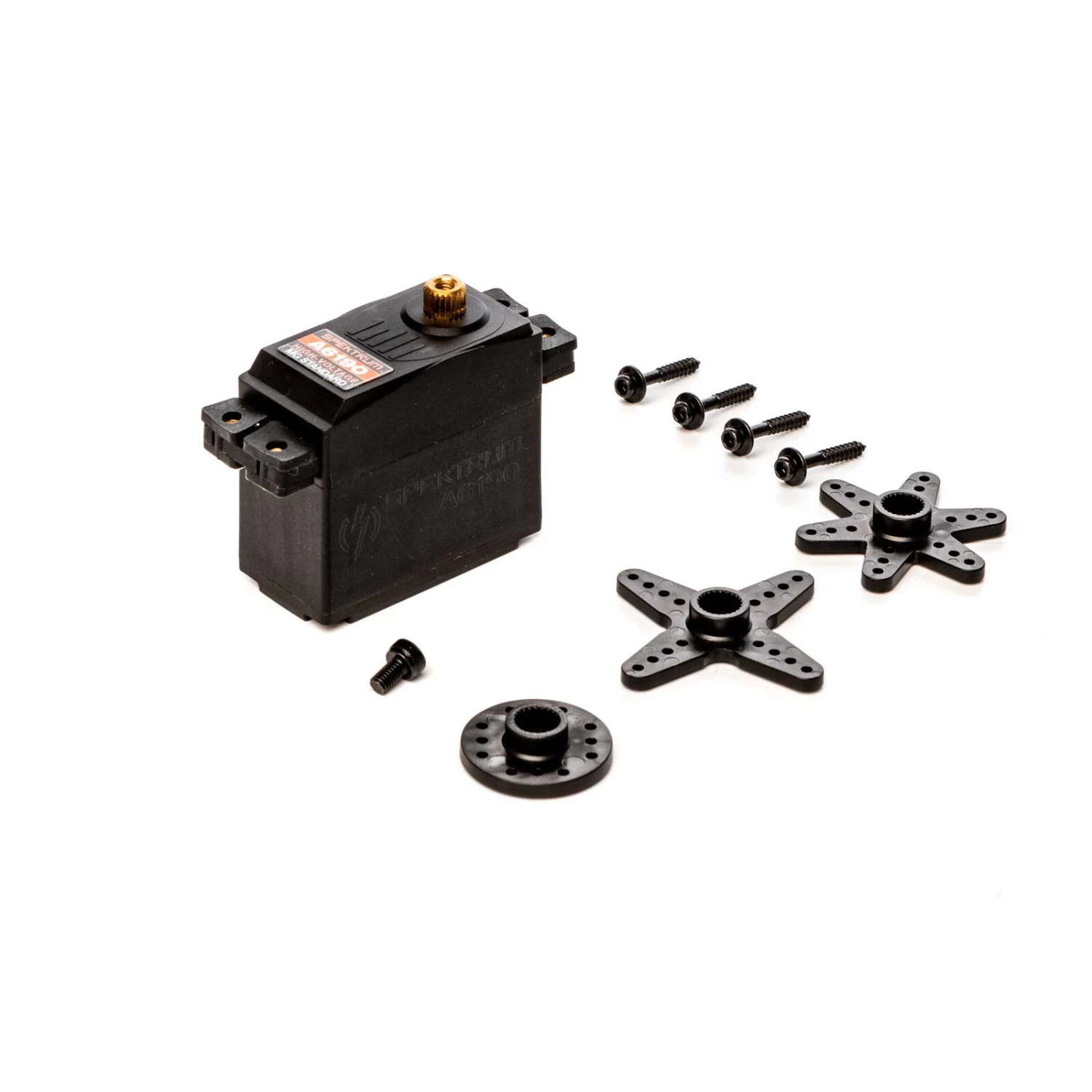

In The Box
- (1) A6190 Standard Digital Servo
- (4) Pre-installed Mounting Grommets And Eyelets With Hardware
- (3) Plastic Servo Arms and (1) Screw
Features
Product Specifications
| Deadband | <1µs |
| Input Voltage | 4.8V-8.4V |

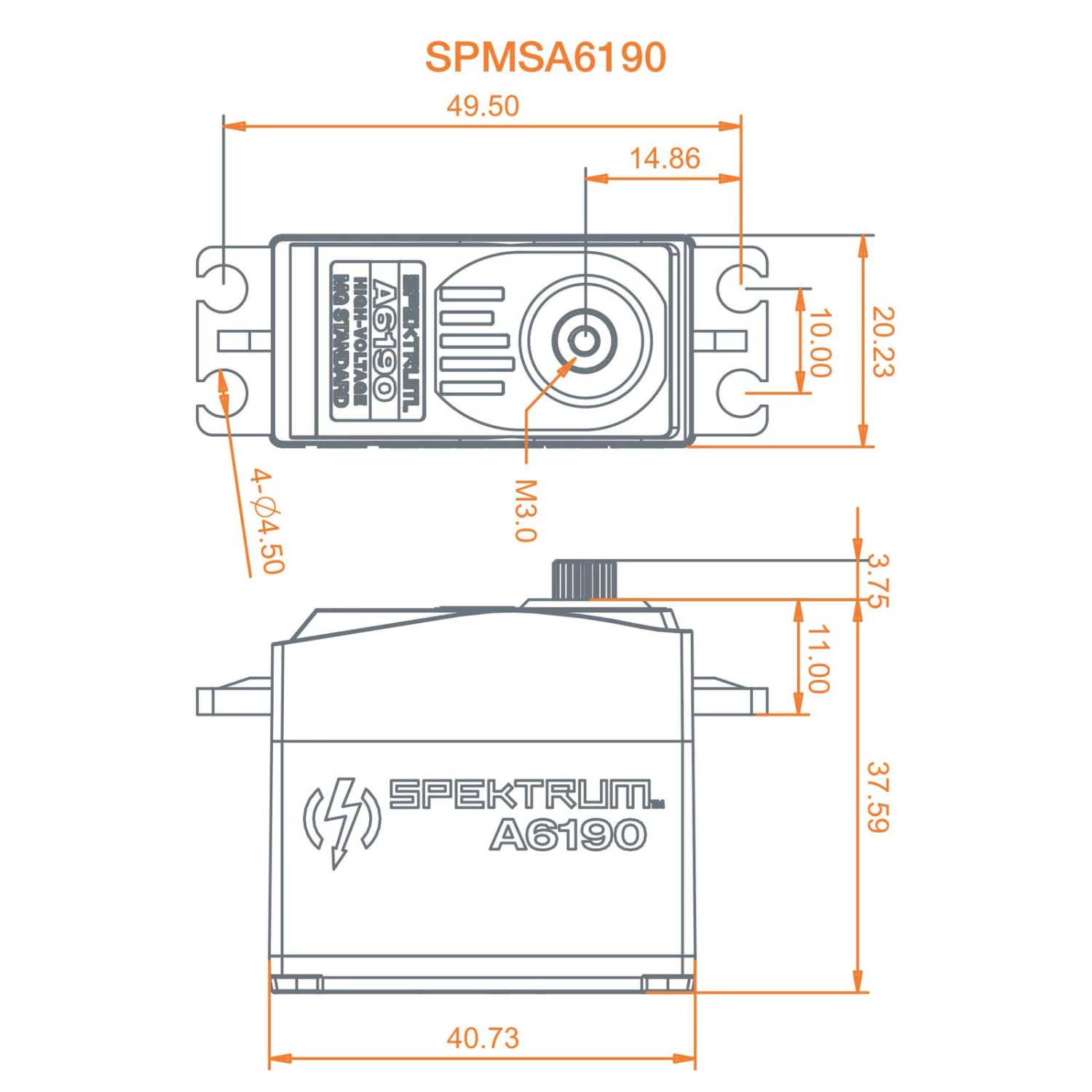

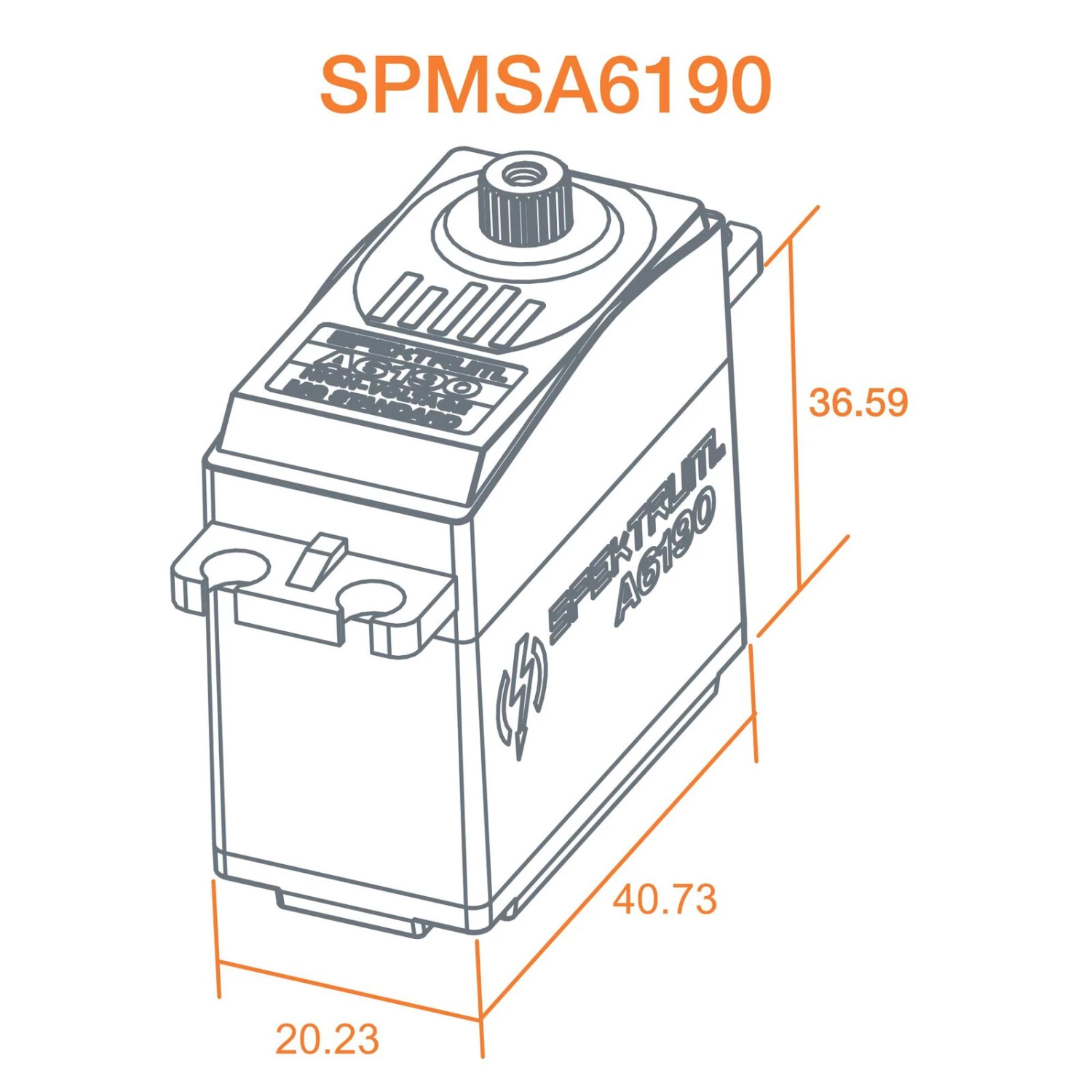

| Product Height | 1.58″ (40 mm) |
| Servo Type | Digital |
| Maximum Servo Speed | 0.22 sec/60 deg @ 6.0V; 0.17 sec/60 deg @ 7.4V; 0.13 sec/60 deg @ 8.4V |
| Bearing | Dual BB |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Product Weight | 1.9 oz (54g) |
| Spline Count | 23 – Tooth |
| Overload Protection | No |
| Max Servo Torque | 40-99 oz-in |
| Maximum Servo Torque | 90 oz-in (6.48kg-cm) @ 6.0V; 98 oz-in (7kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V |
| Servo Operating Voltage | 4.8 – 8.4V (HV) |
| Product Width | 0.78″ (20 mm) |
| Product Length | 1.47″ (37 mm) |
| Programmable | No |
| Servo Size Category | Standard |
