Product Details
Key Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation

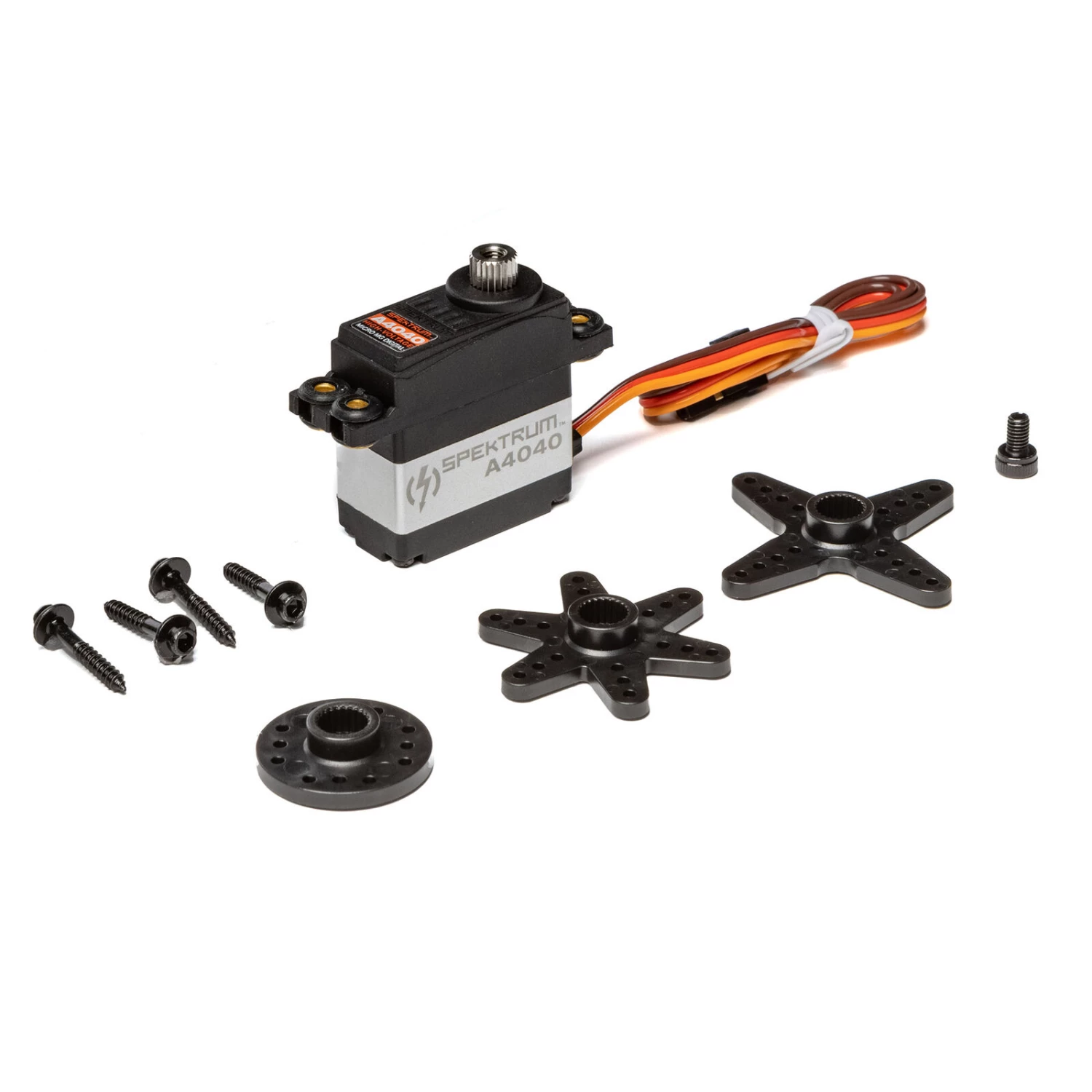

In The Box
- (1) A4040 Micro Digital Servo
- (4) Pre-installed Mounting Grommets and Eyelets With Hardware
- (3) Plastic Servo Arms and (1) Screw
Features

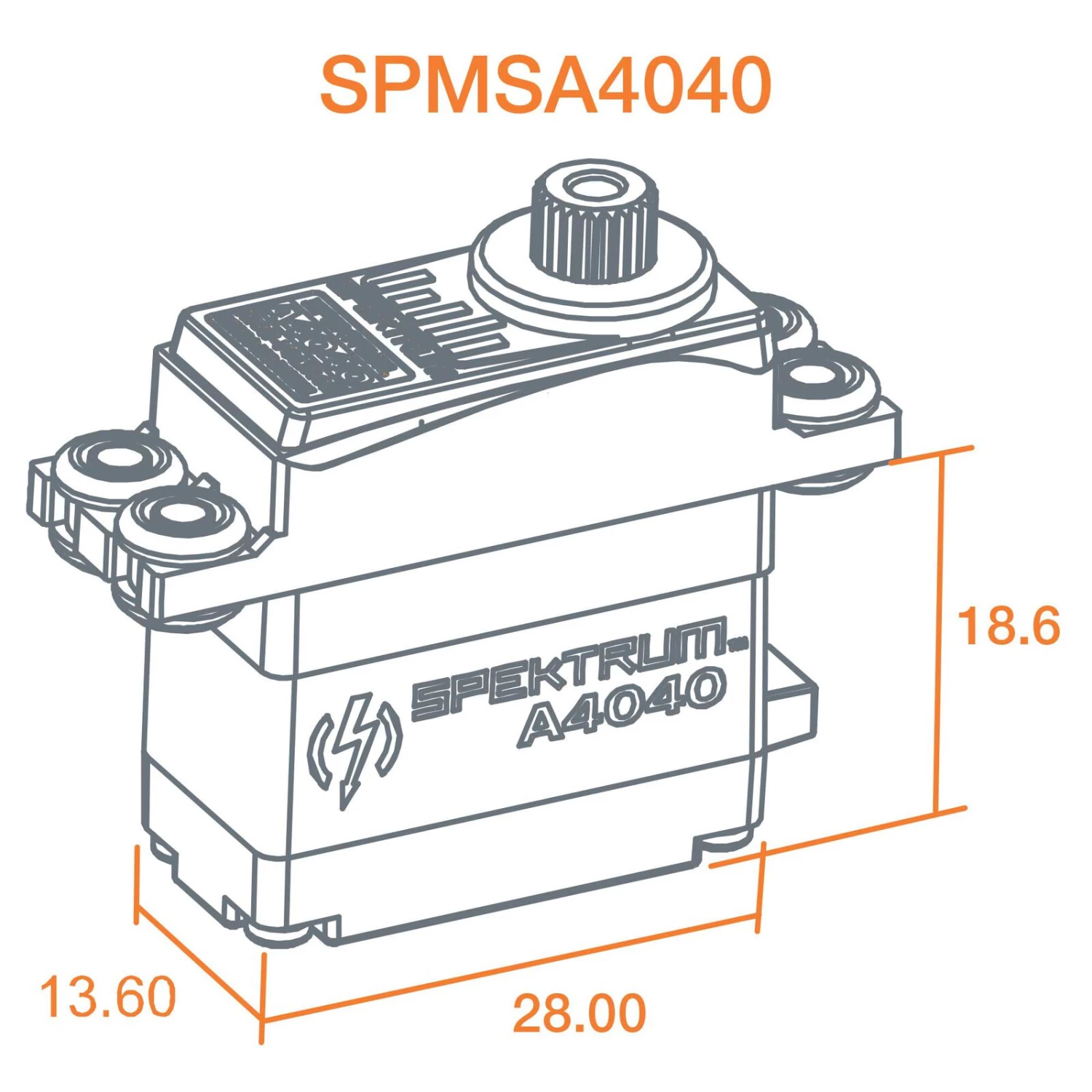

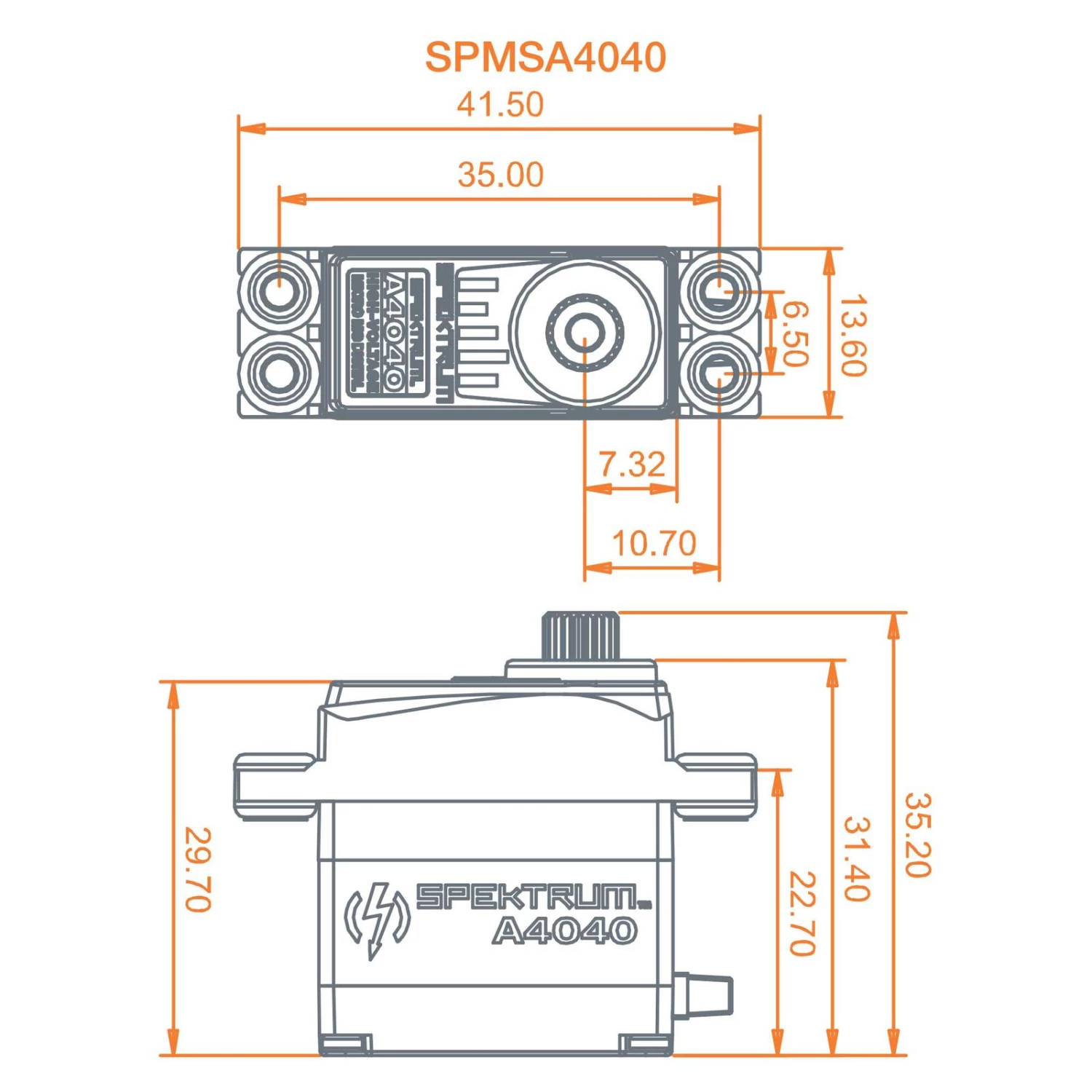

Product Specifications
| Deadband | <1µs |
| Input Voltage | 4.8V-8.4V |
| Product Height | 1.23″ (31 mm) |
| Servo Type | Digital |
| Material | Aluminium |
| Bearing | Single BB |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.16 sec/60 deg @ 6.0V; 0.12 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V |
| Servo Size Category | Mini and Micro |
| Product Weight | 0.9oz (26g) |
| Spline Count | 23 – Tooth |
| Max Servo Torque | 40-99 oz-in |
| Overload Protection | No |
| Product Width | 0.54″ (14 mm) |
| Maximum Servo Torque | 84 oz-in (6.05kg-cm) @ 6.0V; 91 oz-in (6.55kg-cm) @ 7.4V; 96 oz-in (7kg-cm) @ 8.4V |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 – 8.4V (HV) |
| Product Length | 1.1″ (28 mm) |
